How can the industry's best meter also be the least expensive?
Residental MCP
The meter that has it all
The Secret: A Modular, Plug-and-Play Design
The MCP’s one of a kind plug-and-play design gives clients the freedom to customize the number of units monitored by a given metering panel. Clients never have to pay for equipment their business can’t actually utilize, and the panel’s flexible design makes it easy to expand as your business needs require.
Eliminate Expensive Steps
Any time an ordinary meter would need to be uninstalled for processes like accuracy re-verification, the MCP eliminates expensive extra steps. The meter’s electronics module can easily be removed as needed without having to remove anything else from the panel.
Superior Quality
Robust, high quality materials are used in every aspect of building the MCP. From its 30 year battery life to its extensive security measures, the MCP is made to last.
Diverse Applications
The MCP’s versatile design is suitable for both new construction and retrofit projects. The panel can accommodate up to six metering modules, each of which can serve six residential units, for a total of up to 36 units served by a single metering panel.
All Residential Meters

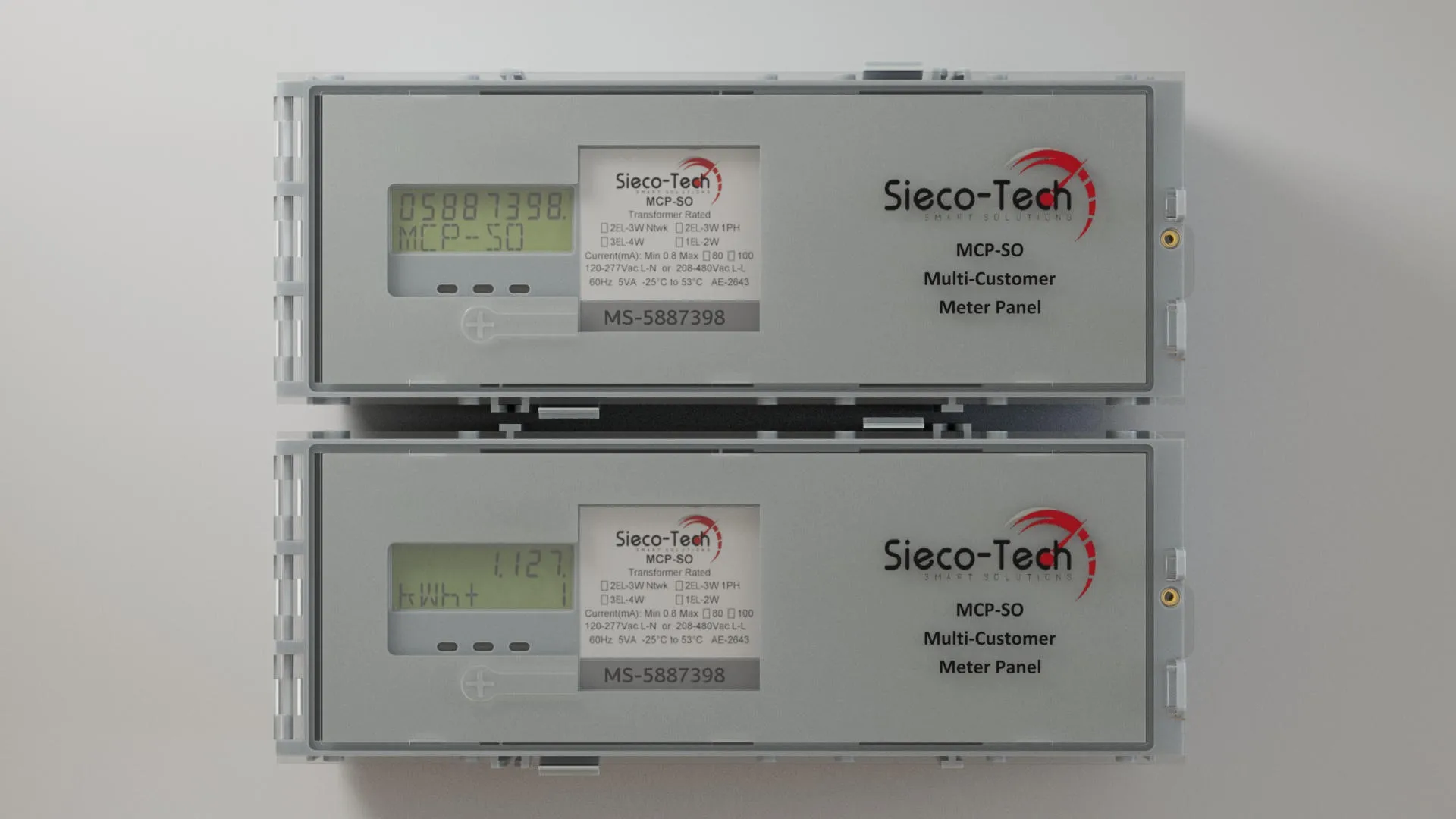

MCP
The MCP is Sieco-Tech’s greatest achievement in sub-metering innovation to date. Its unique, plug-and-play design allows clients to customize the number of units monitored by a single metering panel, accommodating for a total of up to 36 residential units. The meter’s electronics module can easily be removed as needed for processes such as re-verification without removing anything else from the panel.
Clients save substantially on process costs associated with regular meters, are assured that all equipment they pay for can actually be utilized by their business, and access the means to lower their carbon footprint with convenience and ease.
EASE OF SERVICE
- Meter can be easily removed from the meter base for exchange (service work, accuracy sampling, upgrades) and is secured by door/seal at other times
- Field replaceable components (Power Supply, LCD, Display MCU)
- Built-In CT shorting mechanism and test port
- DCU Software is upgradable in the field (per MC PS-E-17 spec)
FUTURE COMMUNICATIONS EXPANSION IN DCU (NOT SEALED)
- Via USB – V.90 modem, Daisy Chain Ethernet, Cellular Modem
- MODBUS TCP and RTU (RS-485)
- BACnet IP
THREE LEVELS OF UTILITY SEALING
- Meter Seal (S-E-02), Terminal Seal (S-E-04), Door Seal
INSTALLATION CERTIFICATION TOOLS
- Built-in connector for CT tracing integrated into meter design
DESIGN & BATTERY LIFE
- 30-year design life, 30-year clock battery
STORAGE CAPACITY
- 5-year on meter data storage capacity
INSIGHT
- Revenue grade metering
EXPANSION SUPPORT
- DCU features expandable in field without breaking meter seal
- USB expansion ports for additional hardware
ACCESSIBILITY
- Remote real-time reading access
SECURITY
- MCP data transmissions are secured using AES-256 bit CBC encryption to ensure confidentiality
- SHA256 hash algorithm authenticates data channel packets to ensure integrity
- Tamper detection on both meters and DCU
COMMUNICATIONS
- Ethernet Port or G3-PLC between floors
MODULAR CONSTRUCTION
- Can add/remove meter modules and parts
- Expand from 12 CTs up to 72 CTs
MODELS AVAILABLE
| Residential | Pre-Manufactured CT Cables, 120V-240V CT Cables Residential - 10ft (3m), RJ-45 Connectors |
| Commercial 240V | Spring Loaded CT Terminals, 120V-240V |
| Commercial 120V-347V | Spring Loaded CT Terminals, 120V-347V |
| Commercial 600V Delta | Spring Loaded CT Terminals, 300V-600V CTs Commercial – 10ft (3m) CT Leads, (Red/Wht, Blk/Wht, Blu/Wht) |
FEATURES
| Voltage Ratings | 120V, 208V, 240V, 277V, 347V, 416V, 480V, 600V |
| Current Ratings | 0.8mA – 100mA, 12 Current Inputs per Module |
| Energy | kWh, kVARh, kVAh, Delivered, Received & Net |
| Demand | kW, kVAR, kVA, Delivered, Received & Net |
| Instantaneous | Volts, Amps, PF, kW, kVAR, kVA, Frequency |
| Dimensions | Each module is: 11.0cm H x 30.2cm W x 8.3cm D (4.3” H x 11.9” W x 3.3” D) |
| Storage | 6 months inside Meter Module, 5 Years in DCU/Display (at 1hr Intervals, 10 Registers) |
| Design Life | 30-year |
| Clock Battery | 30-year |
| Temperature | –40 to 70 Deg C |
| IP Rating | Indoor Use (NEMA 4 Enclosure available for outdoors) |
| Humidity | 0 to 90% non-condensing |
| Accuracy Class | 0.5 Class |
APPROVALS & CERTIFICATIONS
|
Measurement Canada S-E-06 (AE-2616)
|
| ANSI C12.20 |
| California CTEP |
| CSA/UL/IEC 61010 |
| FCC, Part 15, Subpart B |
| Industry Canada CS-03 |
MR1
Sieco-Tech’s original multi-unit metering panel. The panel’s compact design allows it to fit meters for 24 residential units into tight spaces often considered too confined for metering. This makes it possible for more buildings to gain the benefits of sub-metering, which include lowering carbon footprint and reducing costs. The meter’s efficiency also means clients save substantially on space, hardware and wiring, and installation.
COMMUNICATIONS
- Internet Protocol (IP) communications capable
- Meter can establish an internet connection and communicate metering and status information via standard File Transfer Protocol (FTP)
EVENT LOG
- Record events such as under-voltage, over-voltage, and meter programming, including occurrence number and time.
- Includes a power failure information recording function
TIME OF USE (TOU)
- The meter provides the capability of 4 rates, 80 time segments, 4 seasons, 10 day schedules (day-type table) supporting weekends and holidays. Each rate has a separate register to accumulate energy consumption
INTERVAL DATA LOGGING
- The meter records the kWh consumed for every consecutive time interval for every metering point. Logging interval times are selectable from 5 minutes to 24 hours.
- Data remains in memory for a minimum of 96 days at 1 hour intervals
MODELS AVAILABLE
| Residential | Spring Loaded CT Terminals, 300V-600V CTs Commercial – 10ft (3m) CT Leads, (Red/Wht, Blk/Wht, Blu/Wht) |
| Commercial 240V | Spring Loaded CT Terminals, 120V-240V |
| Commercial 120V-347V | Spring Loaded CT Terminals, 120V-347V |
| Commercial 600V Delta | Spring Loaded CT Terminals, 300V-600V CTs Commercial – 10ft (3m) CT Leads, (Red/Wht, Blk/Wht, Blu/Wht) |
FEATURES
| Voltage Ratings | 120V, 208V, 240V, 277V, 347V, 416V, 480V, 600V |
| Current Ratings | 0.8mA – 100mA, 12 Current Inputs per Module |
| Energy | kWh, kVARh, kVAh, Delivered, Received & Net |
| Demand | kW, kVAR, kVA, Delivered, Received & Net |
| Instantaneous | Volts, Amps, PF, kW, kVAR, kVA, Frequency |
| Dimensions | Each module is: 11.0cm H x 30.2cm W x 8.3cm D (4.3” H x 11.9” W x 3.3” D) |
| Storage | 6 months inside Meter Module, 5 Years in DCU/Display (at 1hr Intervals, 10 Registers) |
| Design Life | 30-year |
| Clock Battery | 30-year |
| Temperature | –40 to 70 Deg C |
| IP Rating | Indoor Use (NEMA 4 Enclosure available for outdoors) |
| Humidity | 0 to 90% non-condensing |
| Accuracy Class | 0.5 Class |
APPROVALS & CERTIFICATIONS
|
Measurement Canada S-E-06 (AE-2616)
|
| ANSI C12.20 |
| California CTEP |
| CSA/UL/IEC 61010 |
| FCC, Part 15, Subpart B |
| Industry Canada CS-03 |
RSP

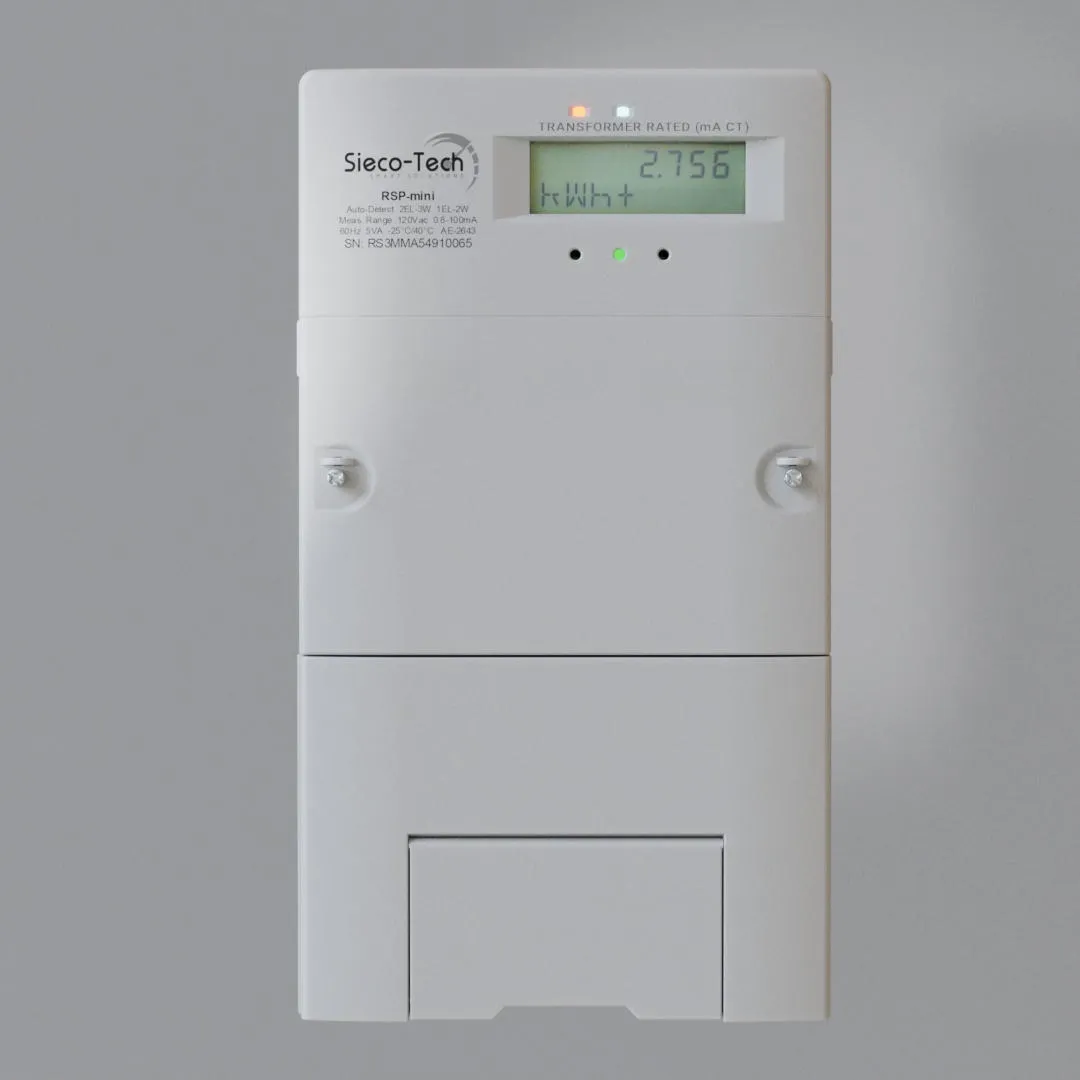

The RSP is one of North America’s most advanced single-residential smart electrical meters. The meter’s surface-mount meter base and compact design makes installation easy, eliminates costly middle steps, and gives clients more control over where meters can be installed. The modular construction of the meter means relevant electrical parts can be easily removed for exchange without having to remove anything else.
EASE OF INSTALLATION
- Slim surface-mount meter base eliminates need for wall patching
BREAKER COMPARTMENT
- Breaker Compartment with UL489 Breaker available to meet Electrical Code installation requirements
COMMUNICATION MODULES
- G3-PLC, RF Mesh, and Ethernet
REAL-TIME CLOCK
- Real-Time Clock, 10-year battery (field replaceable)
MODULAR DESIGN
- Seamless Modules: Meter, Base, Breaker, Comms
EASE OF SERVICE
- Meter Head easily removed from Meter Base for exchange (service work, accuracy sampling, upgrades), but secured by door/seal
TIME OF USE
- Time Of Use Registers, 4 Seasons, Holidays
GATEWAY & HEAD-END SYS
- Advanced, resilient, and secure Gateway and Head-End System
MODEL OPTIONS
- 12-240 volts, 80mA, 100mA or 5 Amp, 1-, 2-element meters
MORE FEATURES
- Digital outputs – kWh energy (scalable, open-collector)
- Optical port – energy pulses and optical communications
- RS485 communications port (Modbus RTU Protocol)
- Pulse Inputs – Reads Dry-Contact or Open-Collector outputs from Third Party Meters (Water, Gas, Thermal, etc.)
-
G3-PLC Communications (optional):
- Secure powerline communications
- Mesh routing determines best path between Nodes
- IPv6 addressing and packet structure
-
Secure:
- Sealed after installation to prevent access
- Tamper switch to alert of unauthorized access
- User access to settings and data secured at multiple levels
- 3 Levels sealing (Meter accuracy, wiring terminals, and utility access door)
- Meets Measurement Canada and ANSI C12.20 class 0.5 requirements
- Logging memory for up to 6 months hourly full kWh register readings
- Harmonic frequency energy registers and waveform capture capability
MODELS AVAILABLE
| Physical Capabilities | RSP (Residential) |
| Rated Voltage (Service Measurement) | 120-240 Vac, 50/60Hz |
| Environmental Conditions | Indoor use only -20°C to +60°C ≤95% relative humidity UL/IEC PD2 (pollution degree 2) |
| UL489 Disconnecting breaker (optional) | 2-pole 10A in supplementary enclosure |
| WYE (Line to Neutral), Delta (Line to Line) | WYE only (Neutral required) |
| Meter Elements | 1 el (1ph/2w), 2 el (2ph/3w or 1ph/3w) |
| Current Transformer (CT) Inputs | 2x 80mA or 100mA (0.8-100mA) Or 2x 5A (0.05-5a) |
| 2 Pulse Outputs (included) | Kp energy pulse |
| 3 Pulse Inputs (optional) | Water, Gas, and Thermal pulse meters
(100 Hz max) |
| Communication Ports | 1 x Optical, 1x RS485 |
| Communication Modules | G3-PLC, RF, Ethernet (installed in meter base on RS485 port) |
MEASUREMENT AND SOFTWARE FEATURES
- KWh Active Energy
- Bi-Directional Energy Measurement
- Current Demand
- Peak Current Demand Recorded
- KVARh Reactive Energy
- KVah Apparent Energy (Vectorial)
- Per phase Instantaneous Volts, Amps, kW, kVAR, Phase Angle, Neutral Amps (Calc)
- Total Instantaneous kW, kVAR, kVA, PF, Hz
- Per phase THD-Volts, THD-Amps
- Demand Response Relay Control
- Real-Time Clock
- Hourly and Daily Logging Memory
- 4-quadrant Phasor Support for Wiring Check
- Temperature Sensor
Physical Size: 8.75” H x 6” W x 2” D
